Filters

Filters are the main way to make dashboard charts dynamic.

Filters can be created in two ways:

  • Add a filter and parameter

  • Link a parameter to a filter

Add a filter and parameter

Create a filter to see which companies are based in a city, with the default set to London.

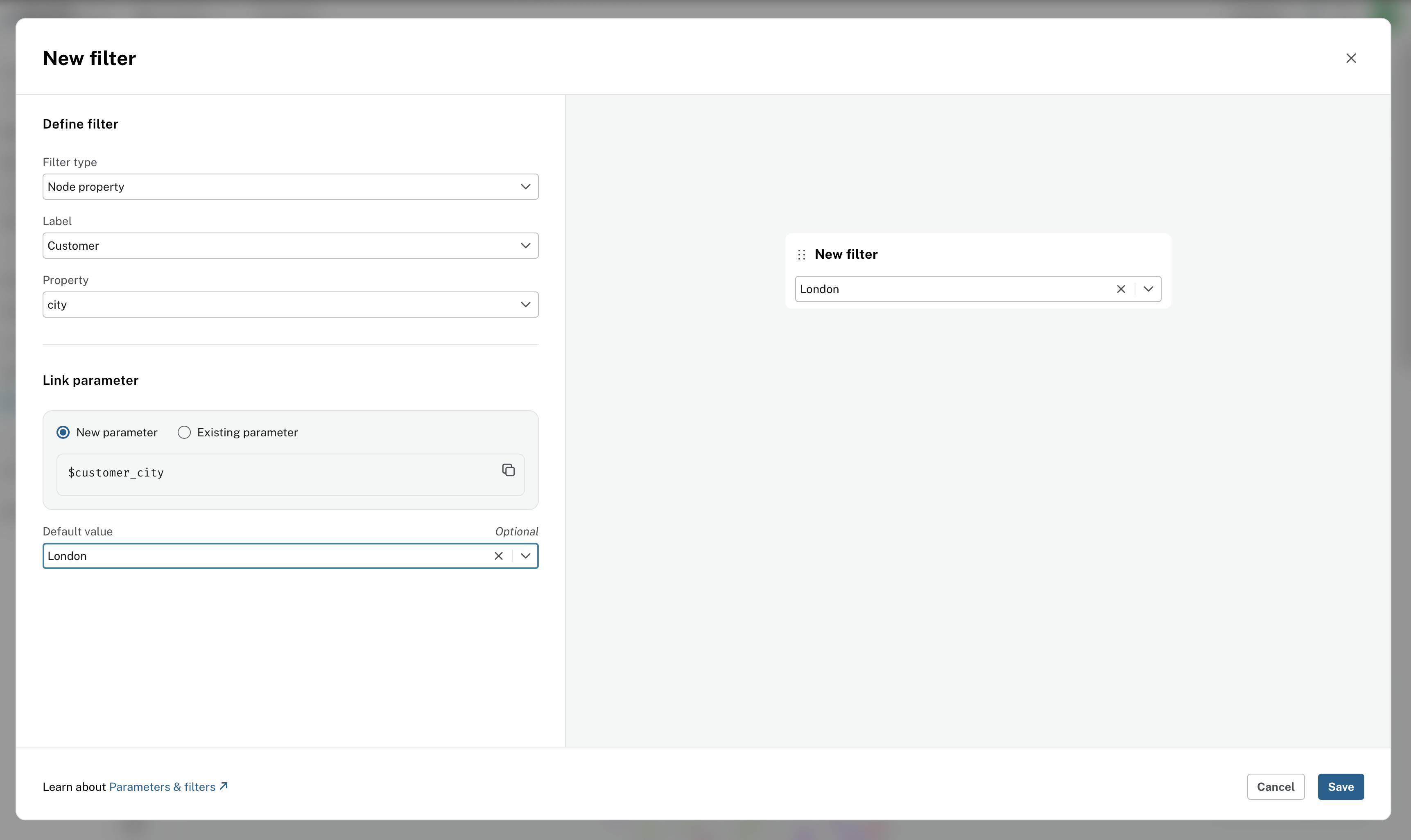

filterexample
Figure 1. Example: Filter to see which companies are based in a city with the default showing London

Step 1: Define the filter

  1. On the Dashboards page, select Add filter.

  2. Choose filter type Node property.

  3. Select the label Customer.

  4. Select the property City.

In the right pane, you can see a preview of how your filter will look and also interact with it.

Step 2: Link the parameter

  1. A parameter named $customer_city is created automatically.

  2. Set the default value to London.

  3. Select Save.

Step 3: Add a card

Paste the following query into the Cypher input, then select Save:

Cypher query for a table which displays customers within a city
MATCH (n:Customer)
WHERE n.city = $customer_city
RETURN n.companyName AS `Company name`
london cypher query example

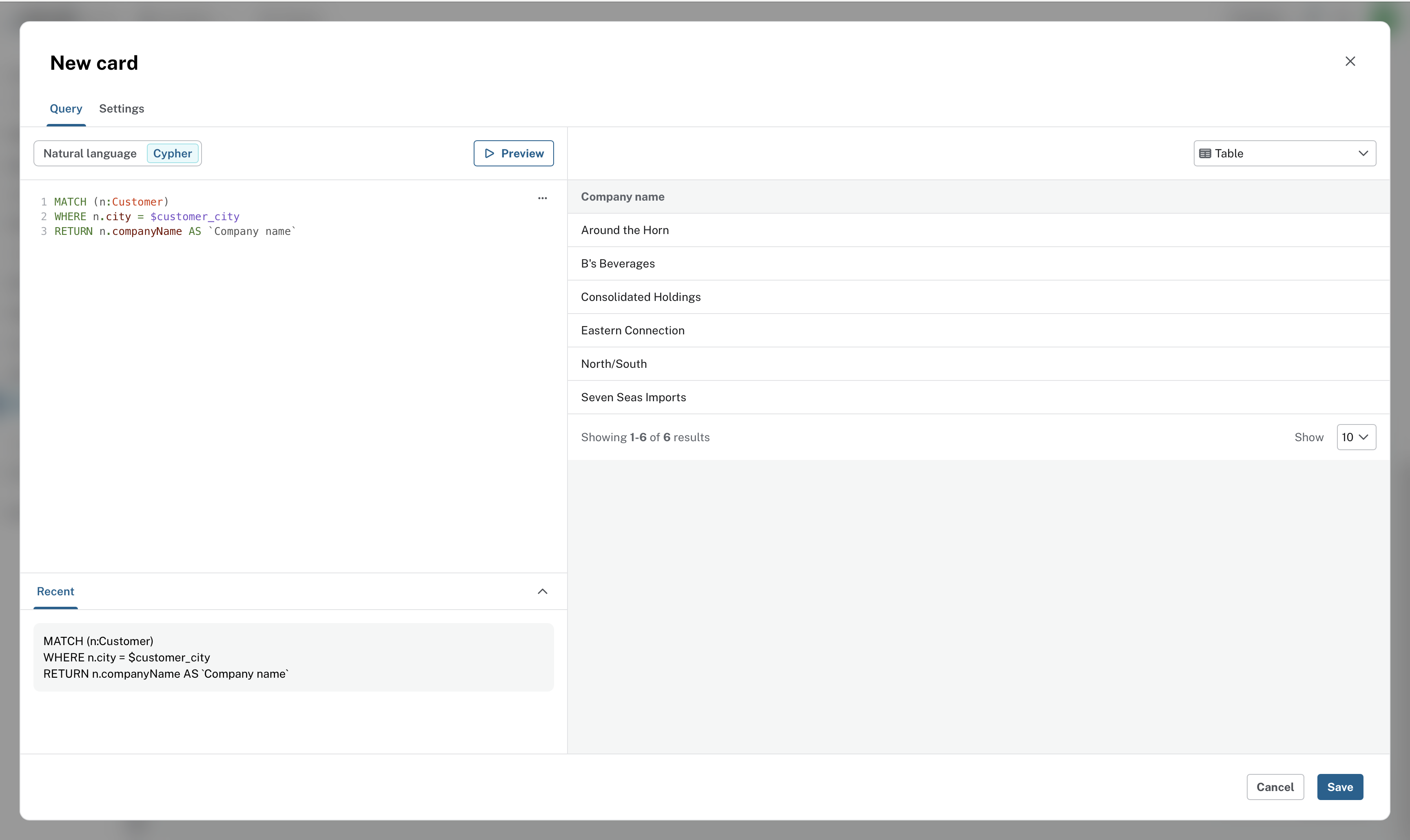

Figure 2. Cypher query for a table which displays customers within a city

Changing the city in the filter updates the table dynamically.

customers located at selected city

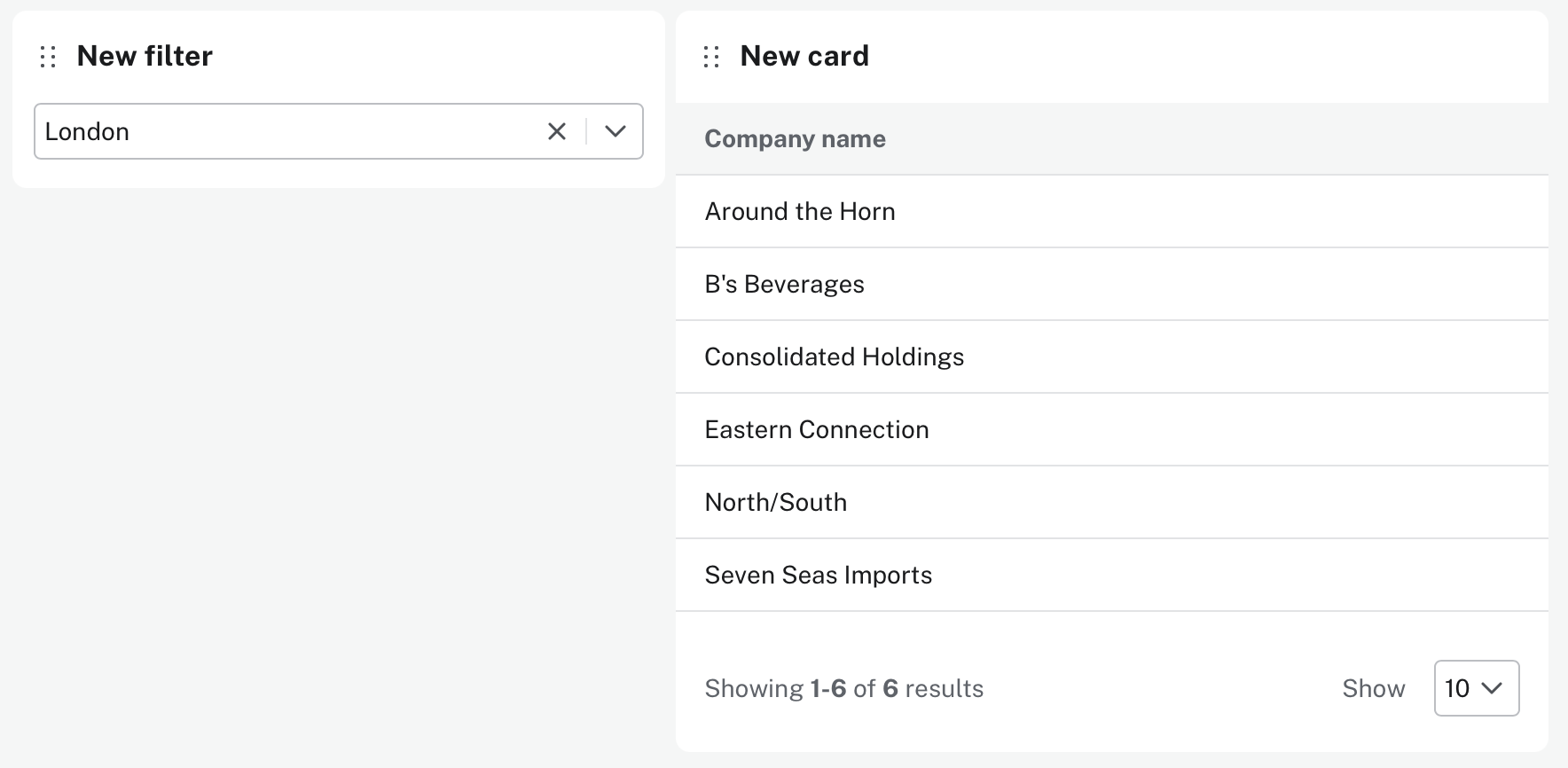

Figure 3. Filter and table showing customers located at the selected city

Link a parameter to a filter

Step 1: Open the parameters drawer {}

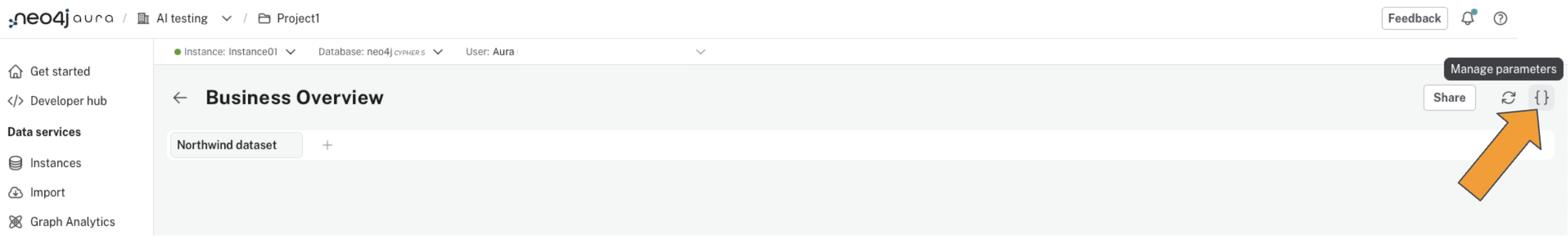

drawer

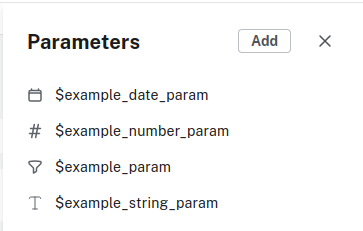

Figure 4. How to access the parameters drawer

Step 2: Add a parameter

  1. Select Add.

  2. In the dialog, enter a parameter name unit_param, select the value type integer, set the default value to 4, then select Save.

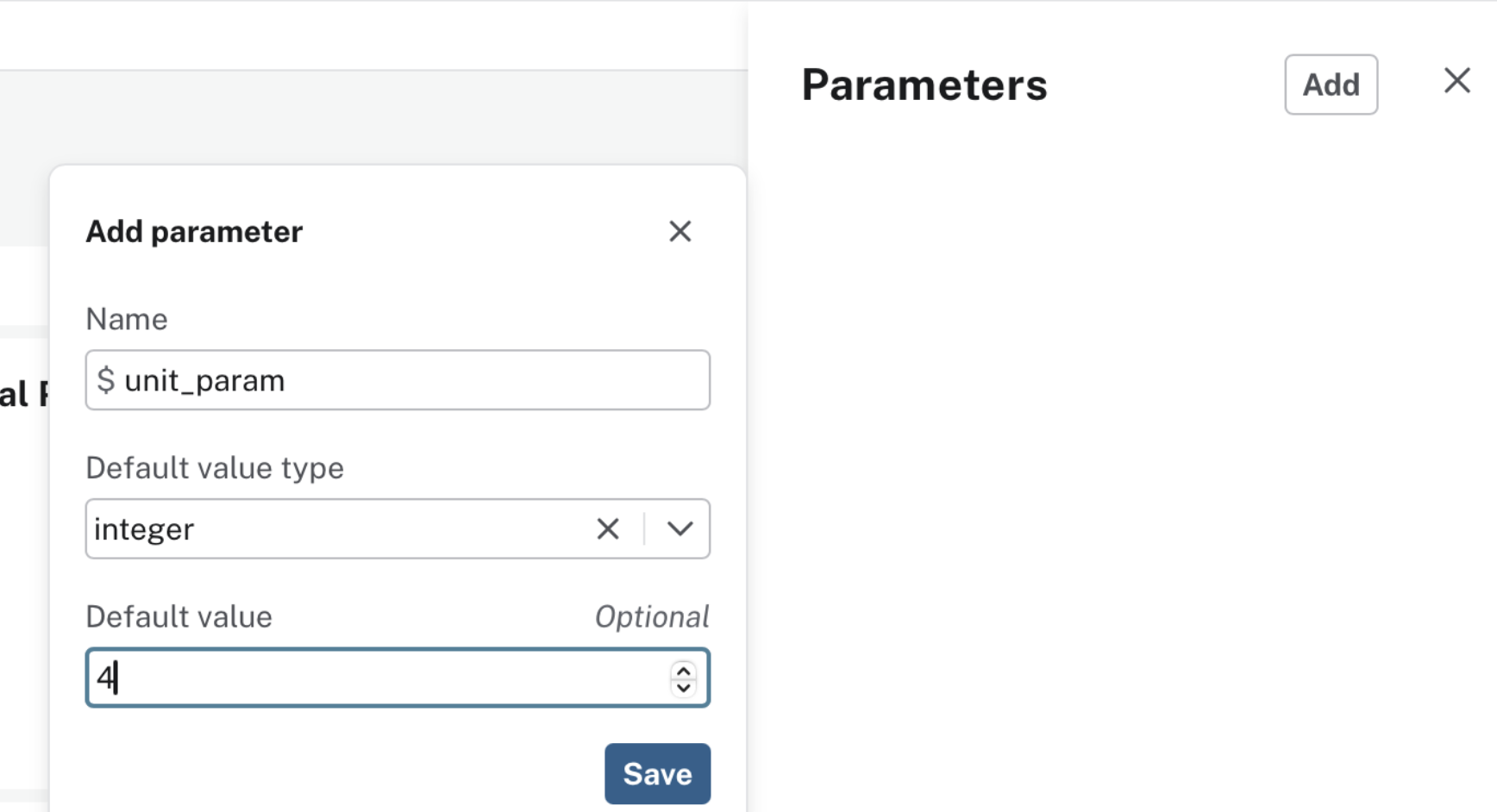

    add parameter
    Figure 5. How to set up a parameter with a number value of 4 named "unit_param"

Step 3: Add a card

  1. Add a card.

  2. Paste the following Cypher into the card, then select Save:

Cypher query for a table which displays products with a certain number of units in stock
MATCH (p:Product)
WHERE p.unitsInStock = $unit_param
RETURN p.productName AS product, p.unitsInStock AS units
LIMIT 10
inquery

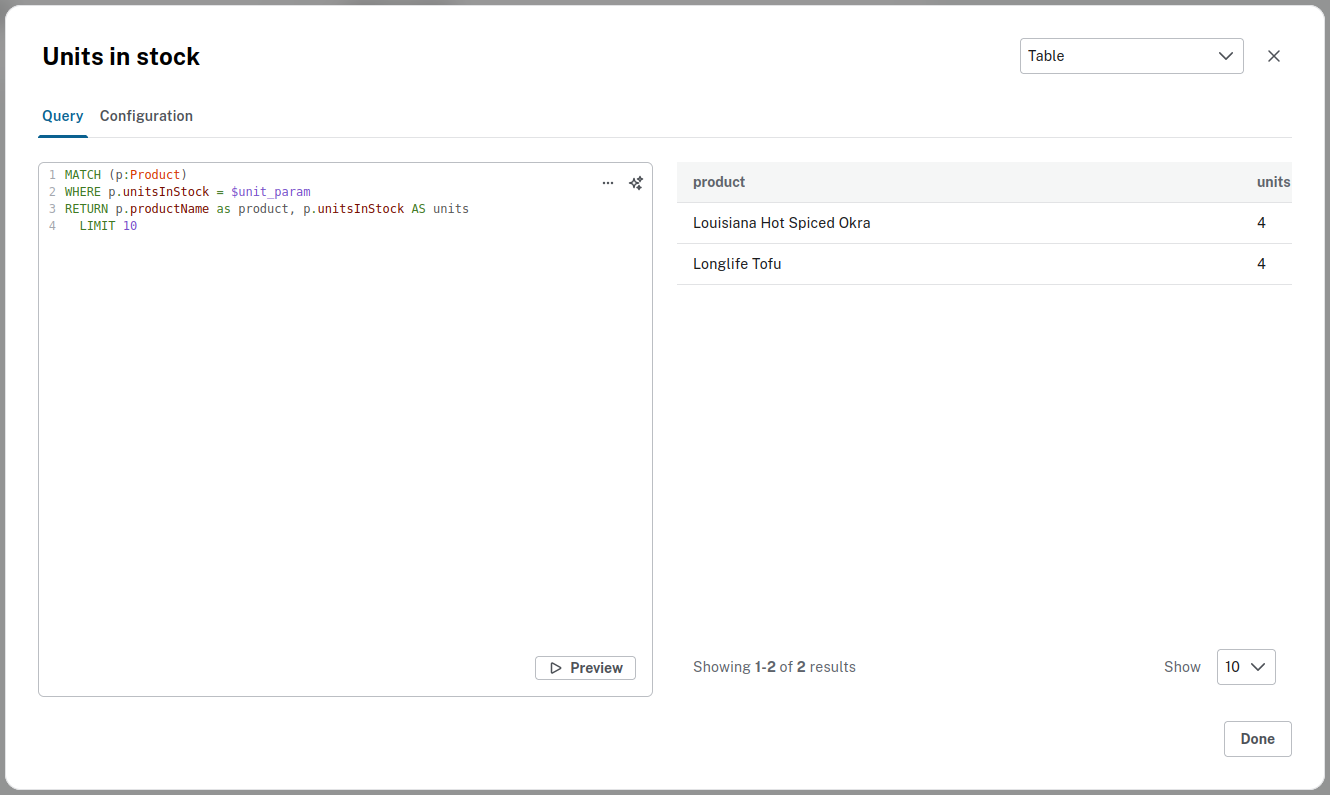

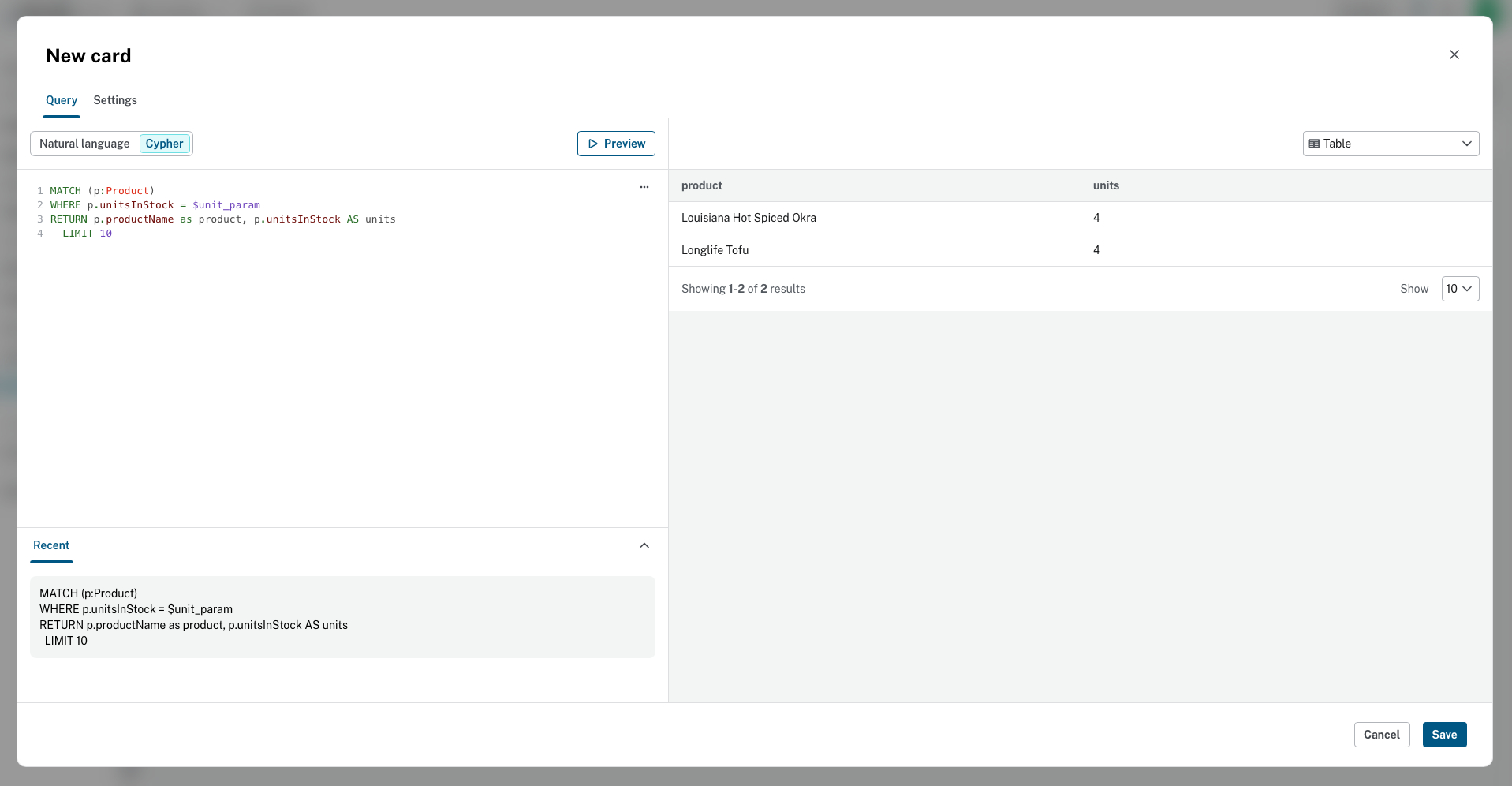

Figure 6. Using a parameter in a query to display products with a certain number of units in stock

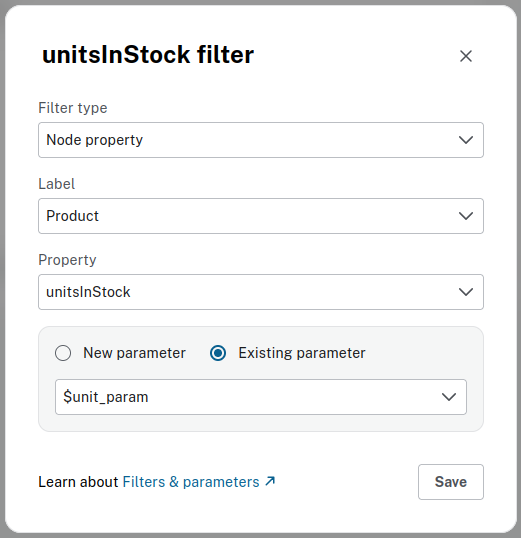

Step 4: Define the filter

  1. Add a filter.

  2. Select the filter type Node property.

  3. Select the label Product.

  4. Select the property unitsInStock.

Step 5: Link the existing parameter

  1. Select existing parameter, then select $unit_param.

  2. The default value is 4 (changing it overrides the parameter default).

  3. Select Save.

The parameter and filter are now connected.

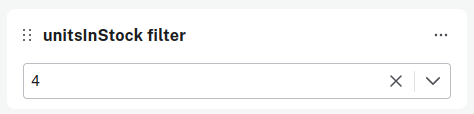

Selecting a value from the dropdown updates the parameter $unit_param and updates the table.

filter and card

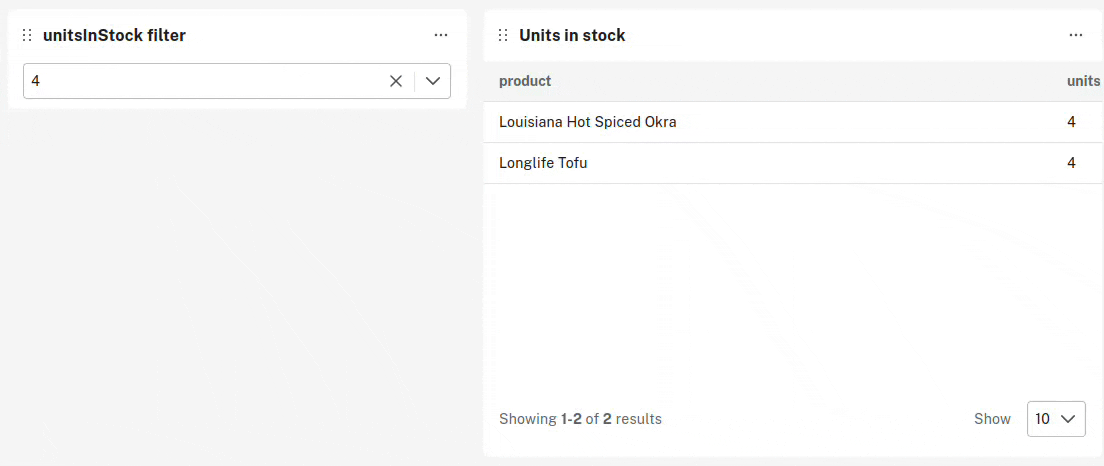

Figure 7. Selecting a new value for the unitsInStock filter
